Patent App. No : 305/DEL/2005

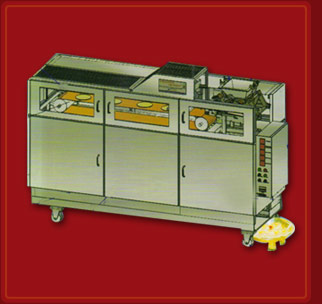

Chapati Making Machine
Fully Automatic Chapati Making Machine
Model : KMP (Pressing Type)
<< : Request a Quote : >>

<< Click Here for Video >>
TECHNICAL SPECIFICATION
MODEL
Chapati Making Machine
KMP-1
Chapati Making Machine
KMP-2
Chapati Making Machine
Machine Area 61/2’ X 2 ½ ’ X 6’ [H] 8.5’ X 2 ½ ’ X 5 1/2’ [H]
Power Required 2.5 KW 4 KW
L.P.G Consumption 4 Kg/hr. 6 Kg/hr.
Chapati Size 4" to 6" Dia 4" to 6" Dia
Chapati Thickness 1.5 - 3 mm 1.5 - 3 mm
Chapati Weight 25gm - 50gm. 25gm - 50gm.
Production Capacity 1000 Chapati / hr. 2000 Chapati / hr.
Machine Weight 850 Kg.(appx.) 1200 Kg.(appx.)
L.P.G Pressure Required 2 Kg/cm2 2 Kg/cm2

SPECIAL FEATURES
1. New Extra Compact Design
Chapati queen KMP Series is a compact single unit fully Automatic Machine for home like chapaties

2. High Capacity
Most suitable for large Industrial Kitchens, Hospitals, Langars and Defence establishments.

3. Robust Construction
Heavy Duty machine with robust construction.

4. No Dry Flour
Oil and dust (Dry flour) free operation. The dough can be prepared without any oil and it is flattened without using any dry flour.

5. Aesthetic Design
Chapati Queen is a good-looking machine suitable for display kitchens.

6. Easy to Operate & Maintain
Simple and robust design requires no special skills to operate and maintain.

7. Easy Asjustments
Adjustable thickness, weight size and browning of the Chapati.

8. Energy Efficient
The insulated vertical oven is most efficient healing chamber possible.
PROCESS
The machine produces balls, which are then pressed into pressing plates by a mechanical press. These pressed chapaties travel on belts to get baked on two sides and puffed onto a puffing grill.
